1. Perfectly balanced, yet light weight and durable.
2. Lugs on sides to secure bikes in transit.

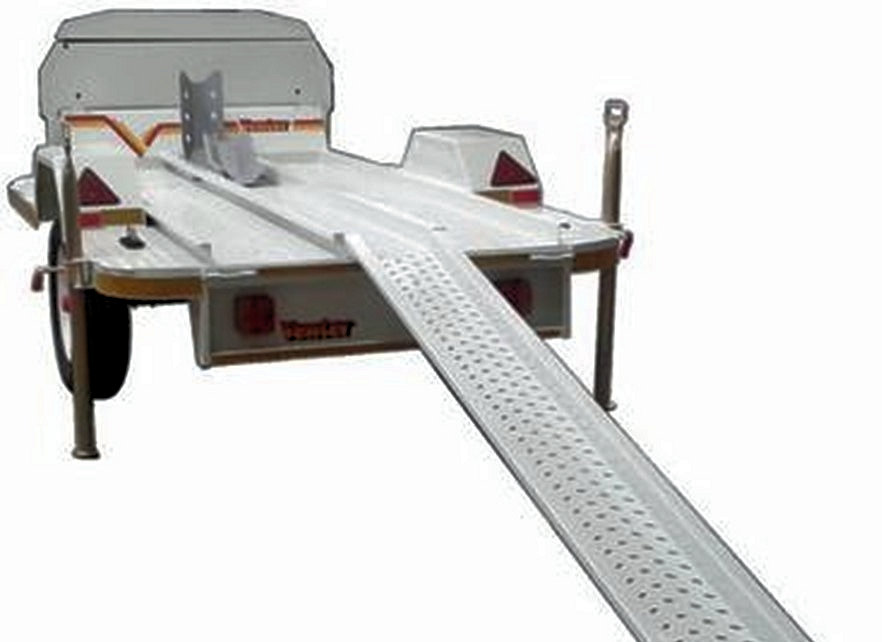

3. Bikes can be loaded from the rear ,ramp supplied)
4. Solid floor.
5. Fitted with a lockable coupler.(lock optional)
6. Equipped with a handbrake chain.
7. Tailights are protected.
9. Including spare wheel 165×13 inch
Dimensions
A Height (over all) 670 mm
B Height (side) 140 mm
C Length (body) 2300 mm
D Length (over all) 3400 mm
E Width (inside) 1000 mm
F Width (over all) 1460 mm
G Ground Clearance 220 mm
Technical Info
Tare Mass 200 kg
GVM 700 kg
Pay Load 500 kg
Brakes No brakes
Axle Length 1400 mm
Axle Capacity 700 kg
Leaf Springs 6 Blade
Wheels 165×13 inch
Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
