Features

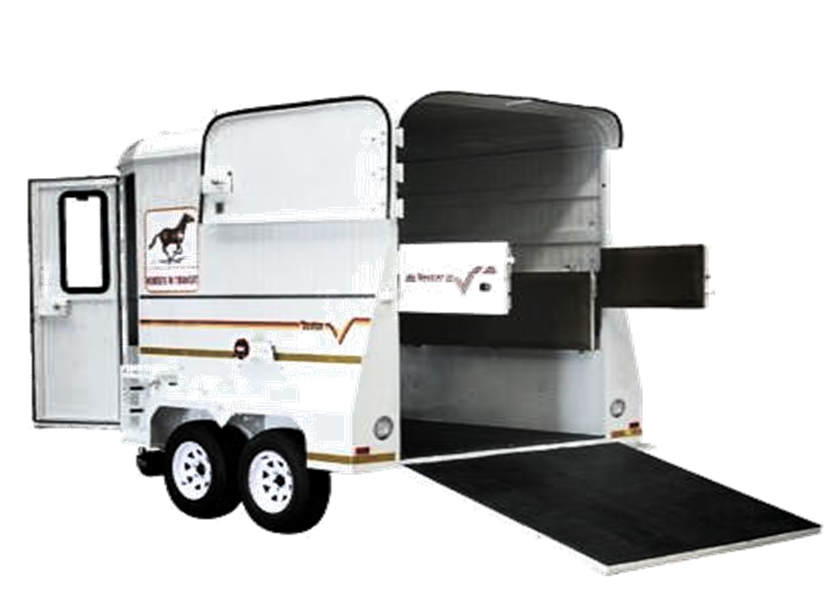

Front nose sports a new streamlined shape reducing wind resistance

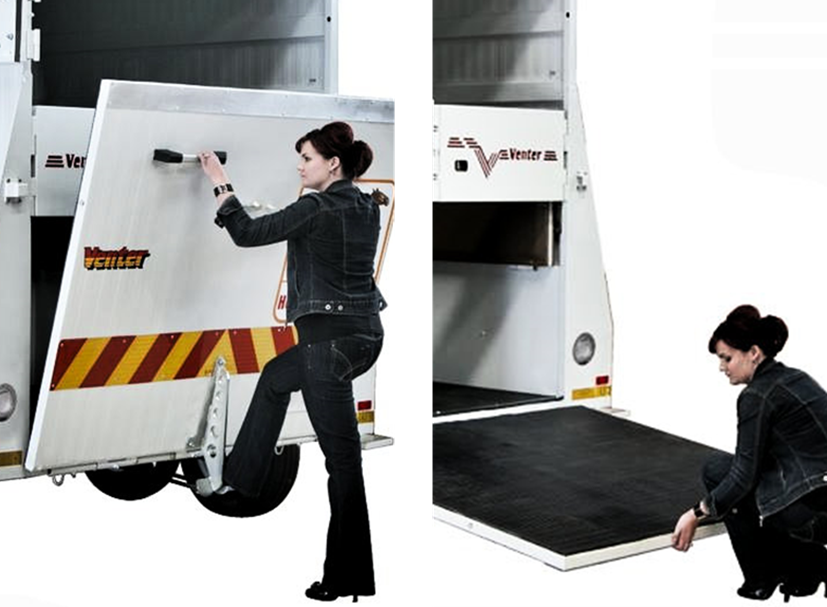

Improved ramp, fitted with double gaslifts and push-down foot pedal, for easier opening
Jerry can holder
Large lockable rear door fitted above ramp, opening 270 deg
Robust chassis, A-Frame and floor plates
Three large windows, middle one protected by a sheet steel screen, two outside windows are fitted with open/close sliding facility

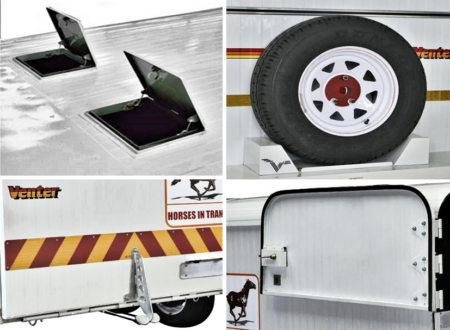

Two air vents fitted on the roof of the trailer
Lockable, easily accessible spare wheel holder, fitted on top of modern improved mudguards
Double jockey wheel 200mm dia
Heavy duty rubber floor mats
All doors and ramp have padlockable facilities
Alko-Trailco coupler and axles

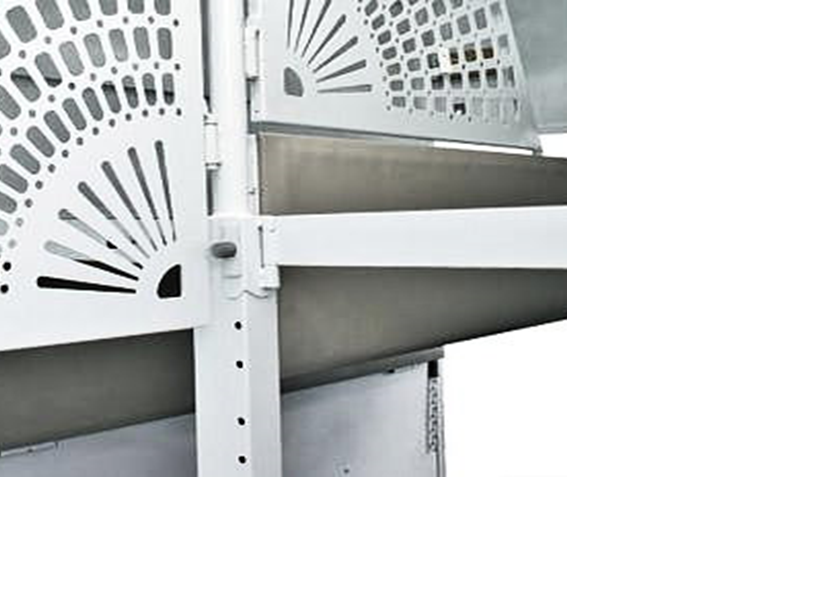

Partition between horses of modern designed perforated steel screen, allowing horses to see each other and gain confidence

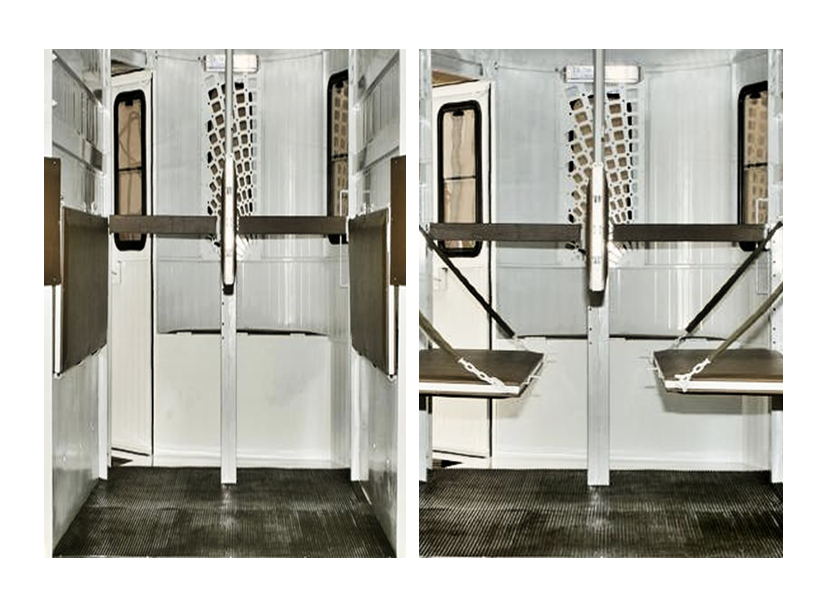

Left and right insides of padded vinyl covered panels, fitted with fold-away beds

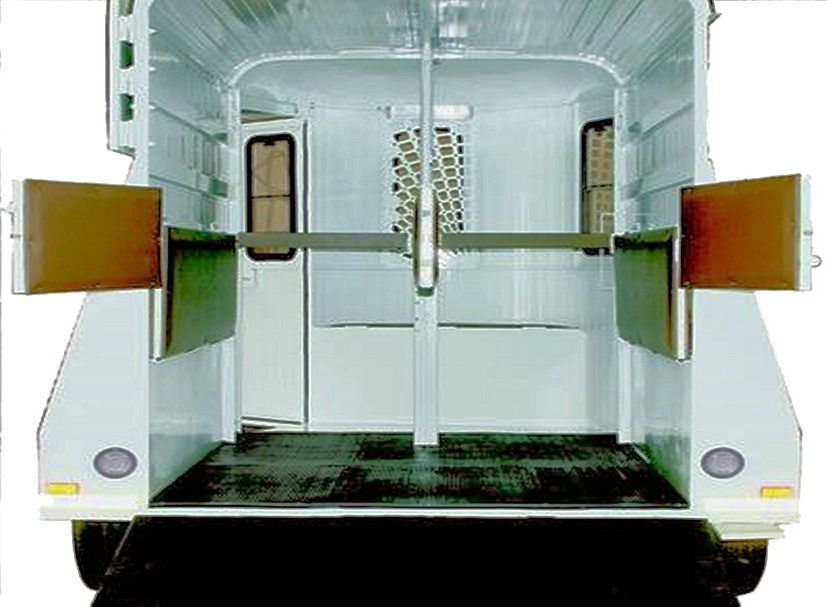

Adjustable padded breast bars and rear padded panels to ensure safety of horses in transit
Front storage compartment for fodder, grooming bags etc
Body constructed from corrosion resistant rigidised zinc galvanised or Electro-galvanised steel, prime coated and quality white final paint is applied
Convenient front door for groom
Including spare wheel 195×14 inch
The trailer has a design registration No. F2004/0491, since 15 April 2004. Copyright also applies in respect of the trailer.
Dimensions:
Height (over all) 2730 mm
Height (inside) 2160 mm
Length (body) 3370 mm
Length (over all) 4695 mm
Width (inside) 1620 mm
Width (over all) 2250 mm
Ground Clearance 310 mm
Technical Info
Tare Mass: 1180 kg
GVM: 2800 kg
Pay Load: 1620 kg
Brake: Run-in brakes
Axle Length: 2060 mm
Axle Capacity: 1800 kg x 2
Leaf Springs: Rubber suspension
Wheels: 195 x 14 inch
Doors
Ramp (rear – height) 1450 mm
Ramp (rear – width) 1690 mm
Door (front – height) 1900 mm
Door (front – width) 675 mm
Door (side – height) 1900 mm
