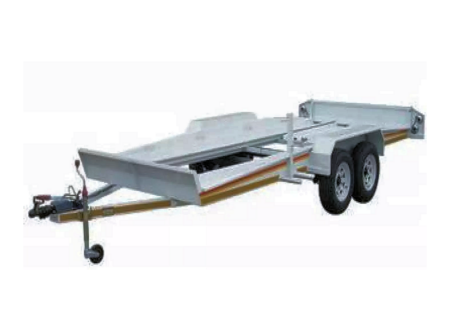

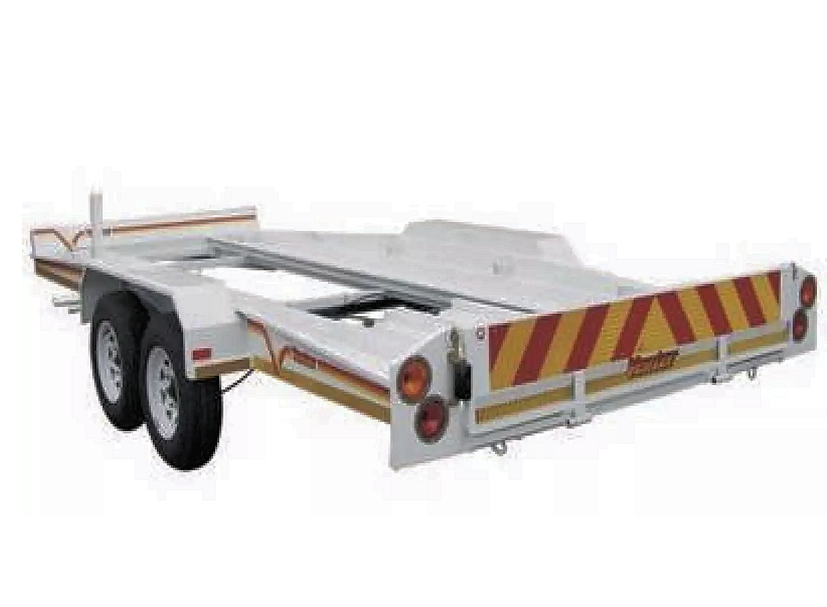

Perfectly balanced, durable vehicle transporter.
1. Floor constructed from 2.0mm zinc galvanized sheet steel.
2. Designed in a U shape for durability and strength.
3. Chassis and A-frame constructed from 76x38x mm recangular tubing.
4. Tandem axles with independent Rubax suspension.
5. Fitted with vacuum and override brakes for maximum safety.
6. Auto reverse coupler for easy maneuvering of trailer.
7. Has 2 removable loading ramps for easy on/off loading, stored under the floor.
8. Trailer can also be utilised to transport furniture and heavy bulky items.
9. Heavy duty lashing hooks for securing vehicle on floor.

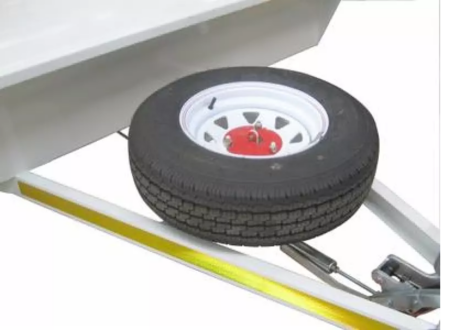

10. Including spare wheel 195×14 inch
Dimensions
A Height (over all) 640 mm
B Height (side) 200 mm
C Length (body) 4000 mm
D Length (over all) 4345 mm
E Width (inside) 1900 mm
F Width (over all) 2500 mm
G Ground Clearance 300 mm
Technical Info
Tare Mass 560 kg
GVM 2200 kg
Pay Load 1640 kg
Brakes yes
Axle Length 2295 mm
Axle Capacity 1100 kg x 2
Leaf Springs Rubber Axle
Wheels 195 x 14 inch
Subject to our general terms and conditions of supply and delivery. Technical data, pricing, dimensions, and weights are subject to change, due to a policy of continual product development. The illustrations are for reference only. Dimensions are in millimetres. Trailer World reserves the right to alter design and specifications without prior notice.
